Some explanations on magnification ratios of SLRs and megapixels.

Reply Contact

There's been a lot of talk about the Canon consumer and prosumer cameras' magnification ratio that occurs when using lenses that are designed for full-frame 35mm sensors because of their smaller sensors. Basically, the reason why your 50mm lens turns into an 85mm lens when using it on the Rebel XTi, XT, 10D, 20D, or 30D is because of the in-camera cropping that occurs. The drawing below explains the basics of it.

A 35mm frame is 36mm wide and 24mm high. An APS-C sized sensor (like all of the digital rebels, 20D, 30D, etc.) is 25.1mm wide and 16.7mm high. Basically, using a lens that's designed for full frame cameras with a camera that has a smaller sensor causes in-camera cropping to occur. Your XTi has turned the 50mm lens into an 85mm lens, that's why you have to scoot back a bit to fit the subjects in the frame. Hope the drawing helps. The dimensions of the sensor sizes aren't to scale but they're close.

There is a way around the magnification though. Canon lenses designed for full-frame cameras are EF lenses. Ones designed for APS-C sized sensors are labeled EF-S lenses. You can use EF lenses on both full-frame and sub-frame cameras, but EF-S lenses can only be used with sub-frame cameras.

There's also a lot of confusion about megapixels, although, I think more people have a firm grasp on this more recently. Another diagram please.

I did the megapixel chart in excel, so the ratios are not exact, but they're fairly close.

I'm a visual learner and when I was learning about all of the technical stuff, I could've used more diagrams.

As always, if any of my info is incorrect, please say so. I pretty sure everything in accurate.

I hope this helps all you visual learners out there!

Michael Harrison

Canon EOS 400D
Apple iMac
Apple Aperture

Harrison Photography

03-09-2007 11:05 PM In reply to

randy25rhoads
Joined on 12-31-2006
Tulsa
Posts 1,503

Re: Some explanations on magnification ratios of SLRs and megapixels.

Reply Contact

Another tidbit of info: I believe that all Nikon DSLRs have a magnification factor of 1.5x. The Canon Rebel XT, XTi, 20D, and 30D all have magnify by factors of 1.6x. Canon's new high-speed camera, the 1D Mark III, and its predecessors, all have factors of 1.3x. The Canon 5D, 1Ds, and 1Ds Mark II have no magnification factor. All three have full-frame sensors, meaning their sensors are the same size as a 35mm film frame. No cropping occurs on these cameras.

Michael Harrison

Canon EOS 400D
Apple iMac
Apple Aperture

Harrison Photography

03-10-2007 12:18 AM In reply to

randy25rhoads
Joined on 12-31-2006
Tulsa
Posts 1,503

Re: Some explanations on magnification ratios of SLRs and megapixels.

Reply Contact

Here are some more diagrams.

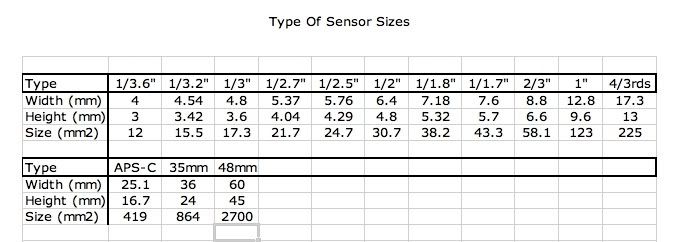

These are some common sensor sizes, from cell phone CCDs to medium format 48mm frames.

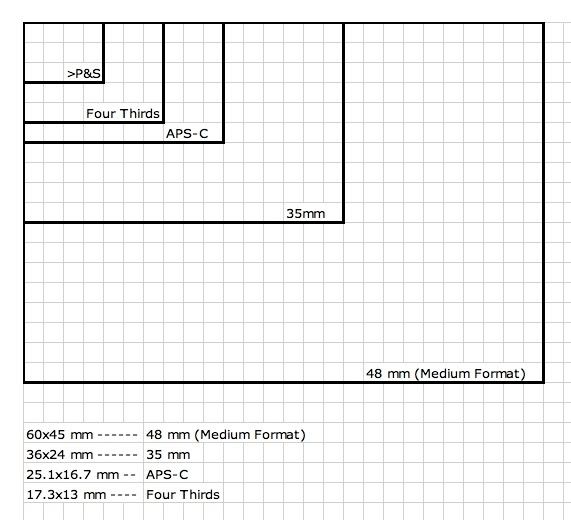

Here's a visual diagram of some of those sizes. It's hard to get them to scale using excel, but they're very close. The P&S sensors are really smaller than what's represented here. (> P&S)
